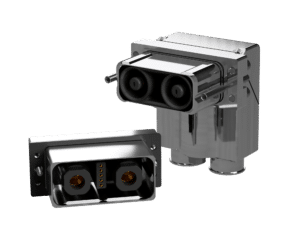

Mobility Aeronautical Connectors
Overview
The Mobility Aeronautical Connector was specifically developed for battery-operated aircraft and provides power and signal in the same connector.
Features & Benefits:
- EMI/EMC shielding
- Flammability index UL94-V0
- Low smoke and toxicity compliant per FAR 25-853(a) and FAR 25-855(d)
- Operating voltage of 800 Vrms up to 15,000 feet altitude
- Current rating up to 170 Amps
- Operating temperature of -55 to +175°C
- Waterproof IP67 / IP69K (in mating condition)
- Safety touch proof IP2x (male and female power contacts)
- 500 mating cycles
- Corrosion resistance tested to 96 hours in salt spray
,
&
