CBF Series

The CBF series is part of the Combo-D family mixed density D-sub to mix signal/power/coax/HV and fiber optic. CBF series connectors offer crimp removable, fiber optic and fixed size 8 and 20 contacts with industrial and Mil/Aero performance options.

Protected by United States Patents 8,944,697 & 9,304,263

Loading...

Your Part Number

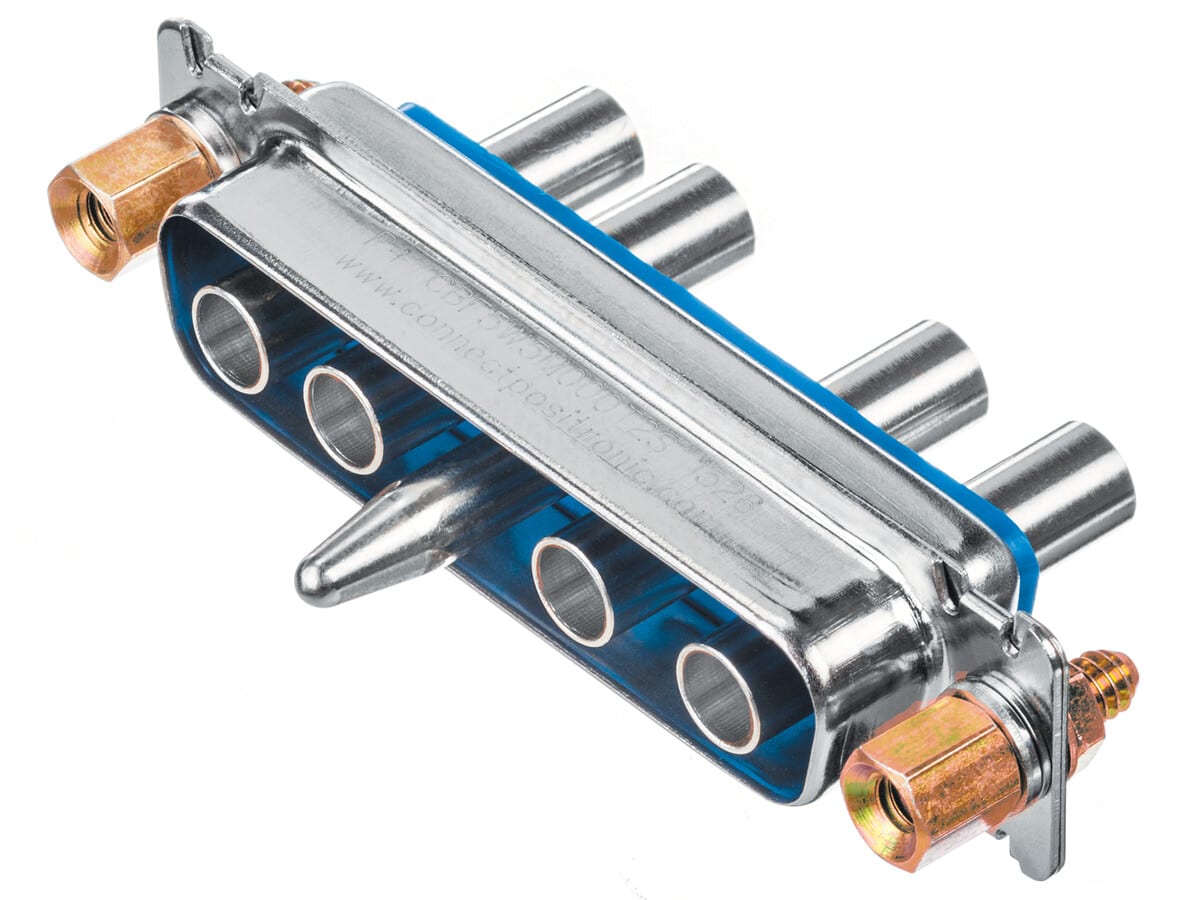

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	CBF
Performance Level	Industrial, Mil/aero
Qualifications	ARINC 801
RoHS Compliance	RoHS 5/6

Materials
Insulator Material	Polyester
Insulator Color	Blue
Flammability Rating	UL 94V-0
Contact Material	Copper Alloy
Contact Plating	Gold flash, 0.76µm Au, 1.27µm Au
Shell Material	Steel, Stainless steel

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	1000
Working Voltage (V rms)	300
Initial Contact Resistance (mΩ, max)	0.5
Contact Current Rating (A)	50

Mechanical
Shape	Rectangular
Body Style	Free cable, Panel mount
Insulator Construction	One-piece
Polarization Method	Trapezoidal shape
Locking System	Mandatory
Clearance and Creepage (mm min)	1.00
Contact Style	Fixed, Removable
Contact Size	#20, #8
Female Contact Design	Open entry, Closed entry
Contact Retention Mechanism	Metal clip, Press-in
Contact Retention (N)	40 to 98
Contact Termination	Wire, PCB
Mating Cycles	500

Environmental
Temperature Range (ºC)	-55 to 125
