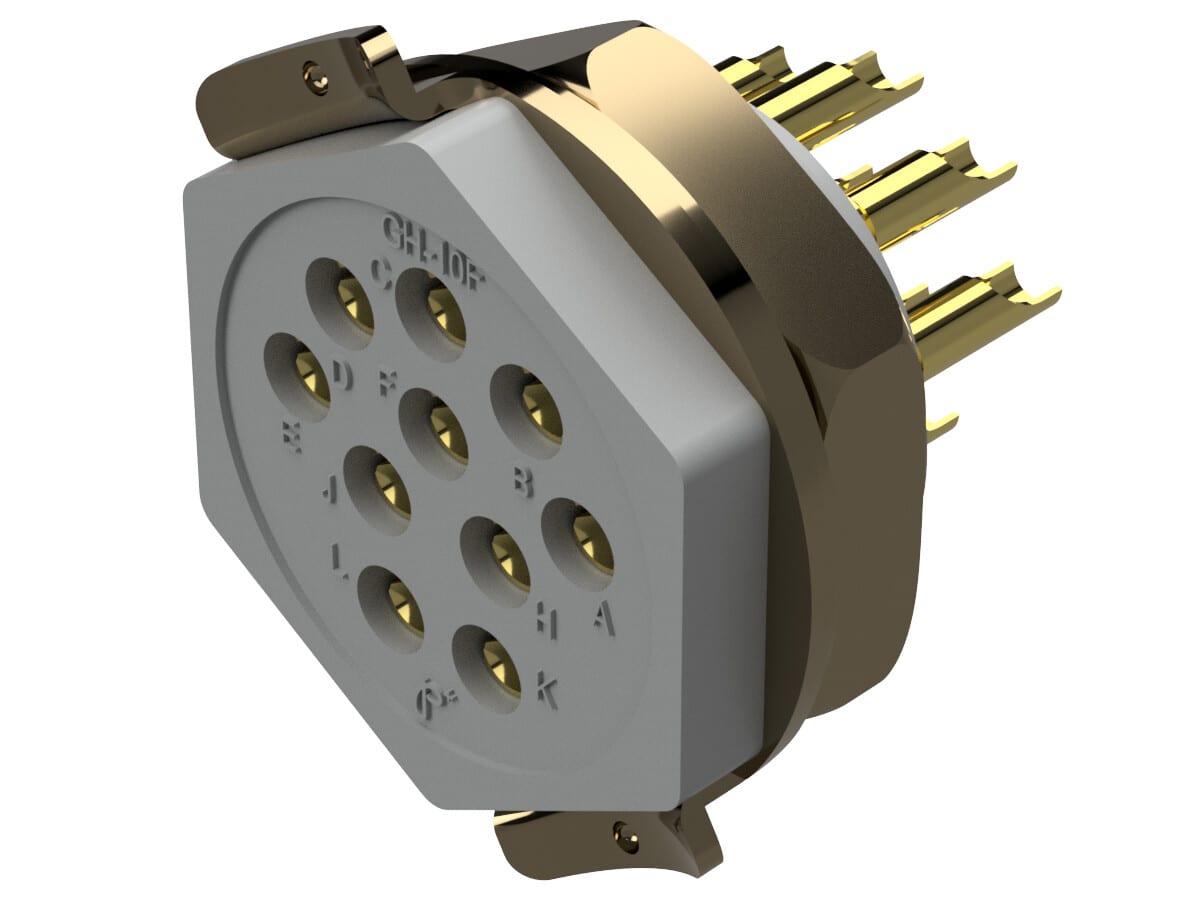

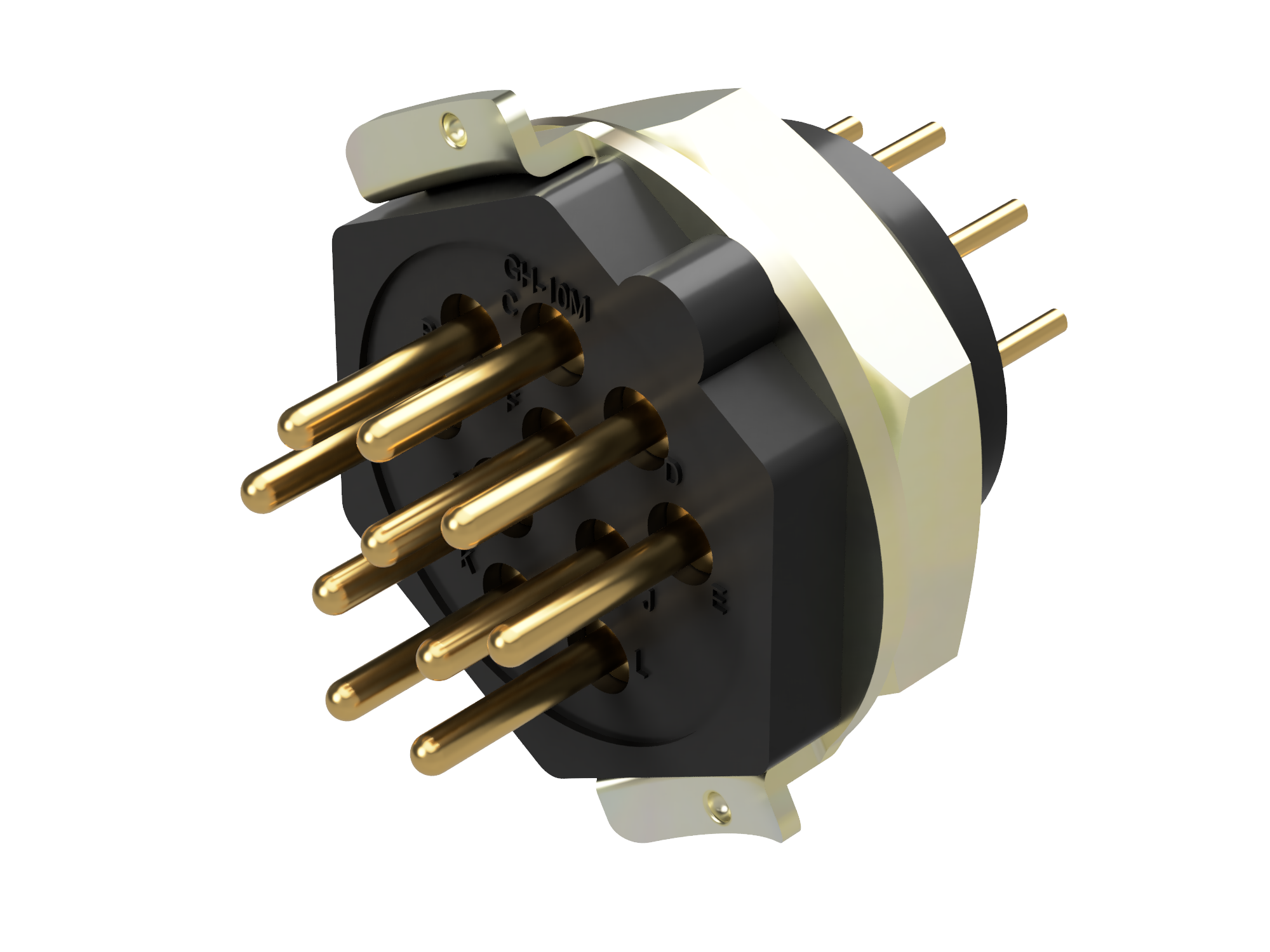

GH Series
The GH series is a part of the Circle Hex family for legacy avionics applications. GH series is a miniature form factor connector series.
General |
|
|---|---|
| Part Number Prefix | GH |
| Performance Level | Industrial, Mil/aero |
| Qualifications | UL #E49351 |
| RoHS Compliance | RoHS 5/6 |
Materials |
|
|---|---|
| Insulator Material | DAP |
| Insulator Color | Grey |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | N/A |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1750 |
| Working Voltage (V rms) | 600 |
| Initial Contact Resistance (mΩ, max) | 10 |
| Contact Current Rating (A) | 7.5 |
Mechanical |
|
|---|---|
| Shape | Circular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Contact layout |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 0.64 |
| Contact Style | Fixed |
| Contact Size | #20 |
| Female Contact Design | Open entry, Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 44 |
| Contact Termination | Wire, PCB |
| Mating Cycles | 500 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
| Lead Free Solder Process | 1 |
