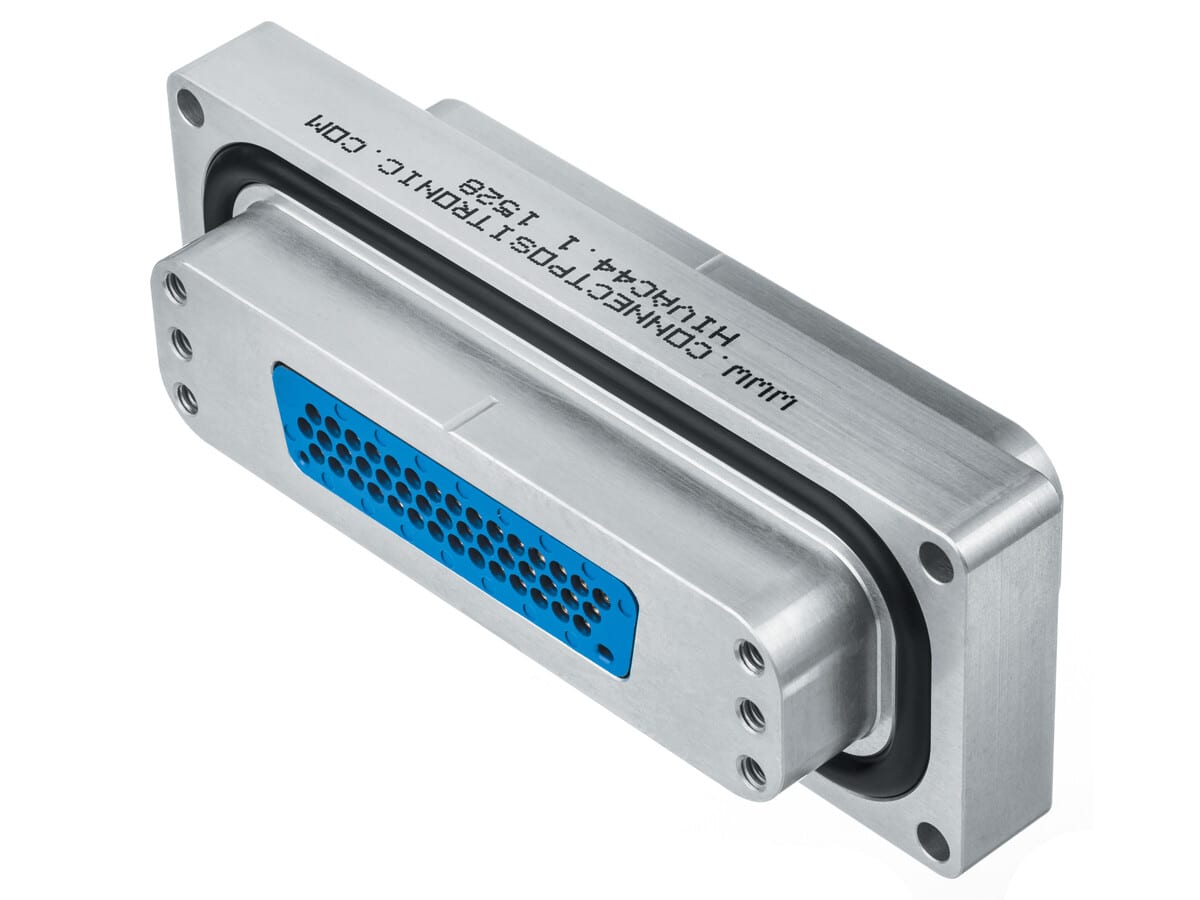

HIVAC Series
The HIVAC series is part of the Hermetic family of modular hermetic feedthrough connectors for space and industrial vacuum applications. The HIVAC connector series feature size 20 or 22 contacts.
General |
|
|---|---|
| Part Number Prefix | HIVAC |
| Performance Level | Mil/Aero, Spaceflight |
| RoHS Compliance | RoHS 5/6 |
Materials |
|
|---|---|
| Insulator Material | DAP |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Brass, Stainless steel |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | 5 |
| Contact Current Rating (A) | 7.5 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.00 |
| Contact Style | Fixed |
| Contact Size | #22, #20 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 40 |
| Contact Termination | Feedthrough |
| Mating Cycles | N/A |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -40 to 125 |
| Lead Free Solder Process | 1 |
