PLB Series - Positronic The Science of Certainty

Loading...

Your Part Number

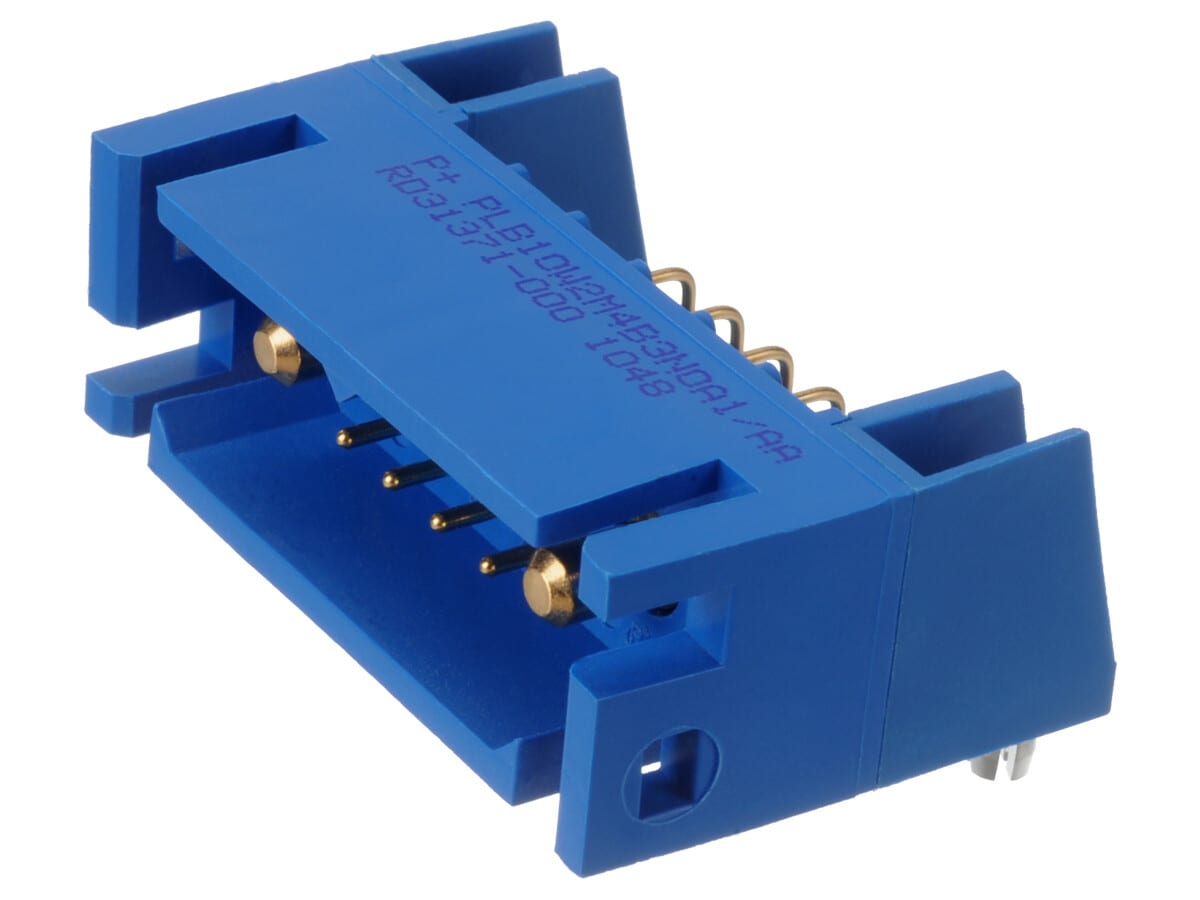

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	PLB
Performance Level	Industrial
Qualifications	CUL #E49351
RoHS Compliance	RoHS 5/6 (6/6 on select parts)

Materials
Insulator Material	Polyester
Insulator Color	Blue
Flammability Rating	UL 94V-0
Contact Material	Copper Alloy
Contact Plating	Gold flash, 0.76µm Au, 1.27µm Au
Shell Material	N/A

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	2000
Working Voltage (V rms)	600
Initial Contact Resistance (mΩ, max)	1.6
Contact Current Rating (A)	18

Mechanical
Shape	Rectangular
Body Style	Free cable, Panel mount
Insulator Construction	One-piece
Polarization Method	Insulator keyway
Locking System	Integrated
Blind Mating	1
Clearance and Creepage (mm min)	4.00
Contact Style	Fixed, Removable
Contact Size	#16
Female Contact Design	Closed entry
Contact Retention Mechanism	Metal clip, Press-in
Contact Retention (N)	26
Contact Termination	Wire, PCB
Mating Cycles	500

Environmental
Temperature Range (ºC)	-55 to 125
