XAVAC Series

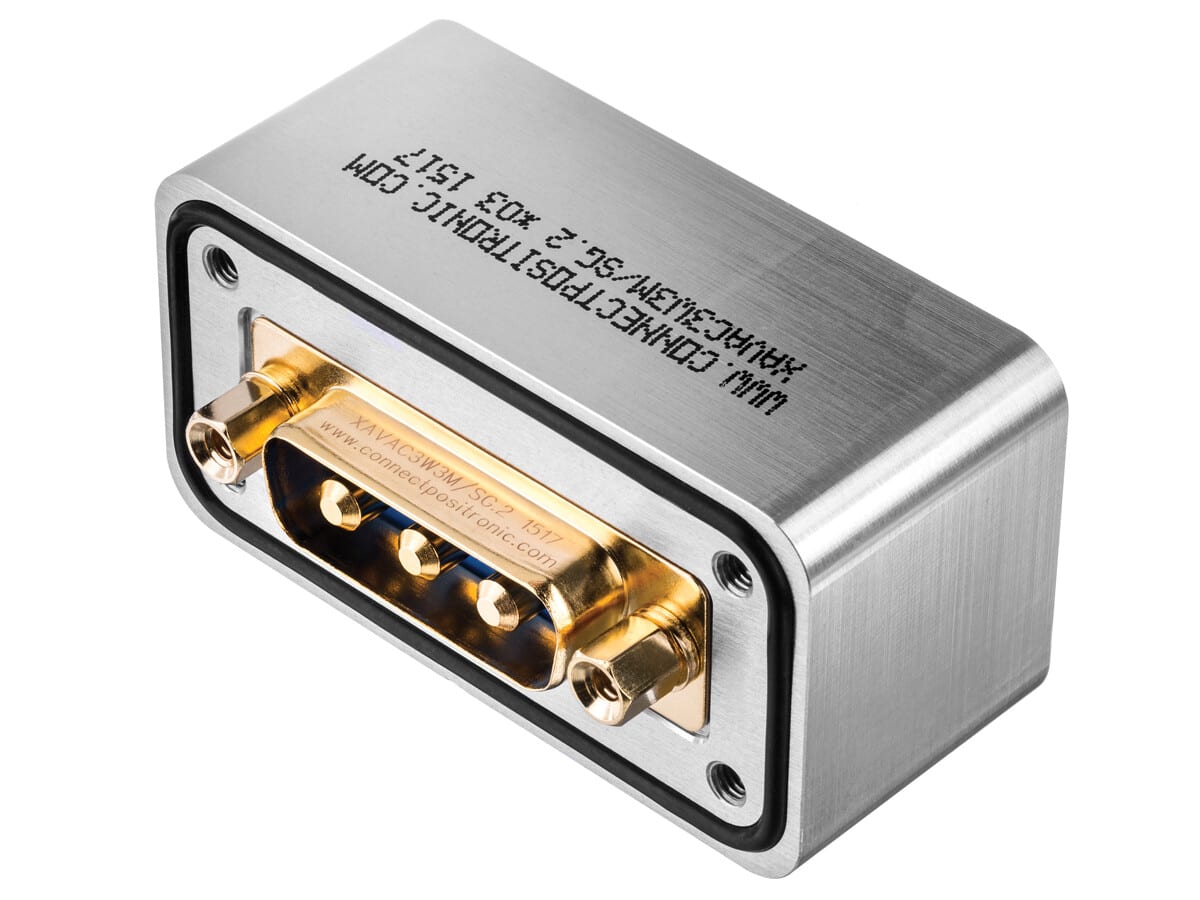

The XAVAC series is part of the Hermetic connector family of feedthroughs for vacuum applications. XAVAC is a larger connector than SAVAC with four retention screws.
General |
|
|---|---|
| Part Number Prefix | XAVAC |
| Performance Level | Mil/aero, Spaceflight |
| RoHS Compliance | RoHS 5/6 |
Materials |
|
|---|---|
| Insulator Material | DAP, Polyester |
| Insulator Color | Green, Blue |
| Flammability Rating | UL 94V-3 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Brass, Stainless steel |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 to 2700 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | Signal & power: 5, Coaxial & high voltage:8 |
| Contact Current Rating (A) | 10 to 40 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.00 |
| Contact Style | Fixed |
| Contact Size | #22, #20, #8 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 40 |
| Contact Termination | Feedthrough |
| Mating Cycles | 500 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
| Lead Free Solder Process | 1 |
